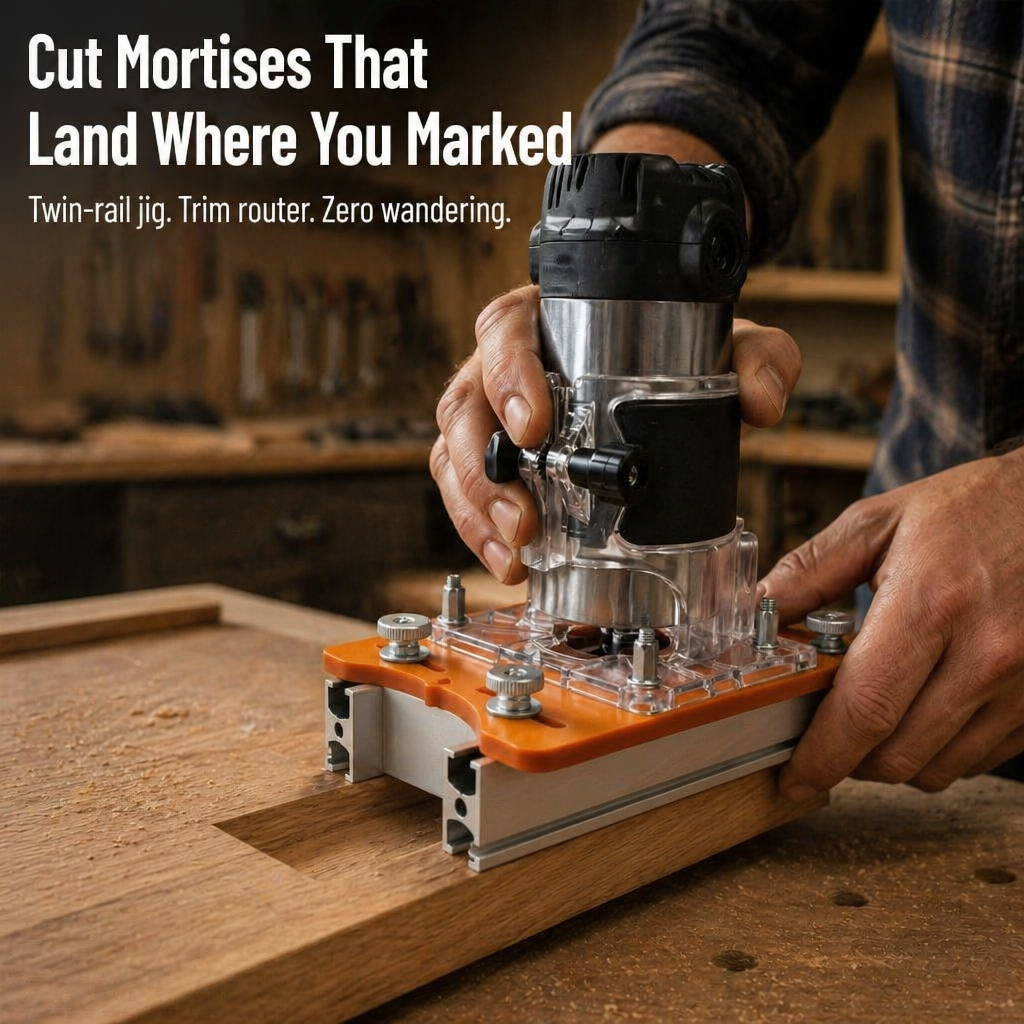

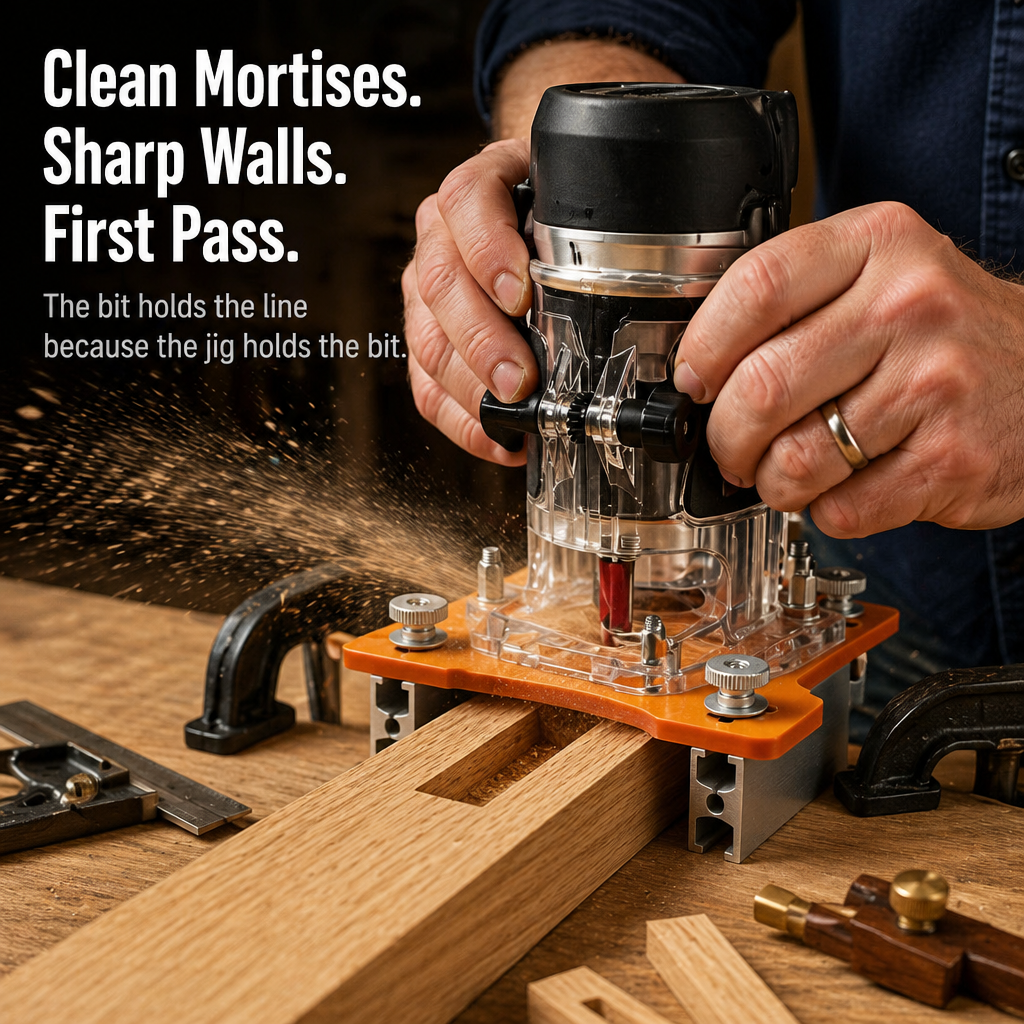

Cut mortises and concealed-fastener slots exactly where you mark them with a router path that stays true from start to finish.

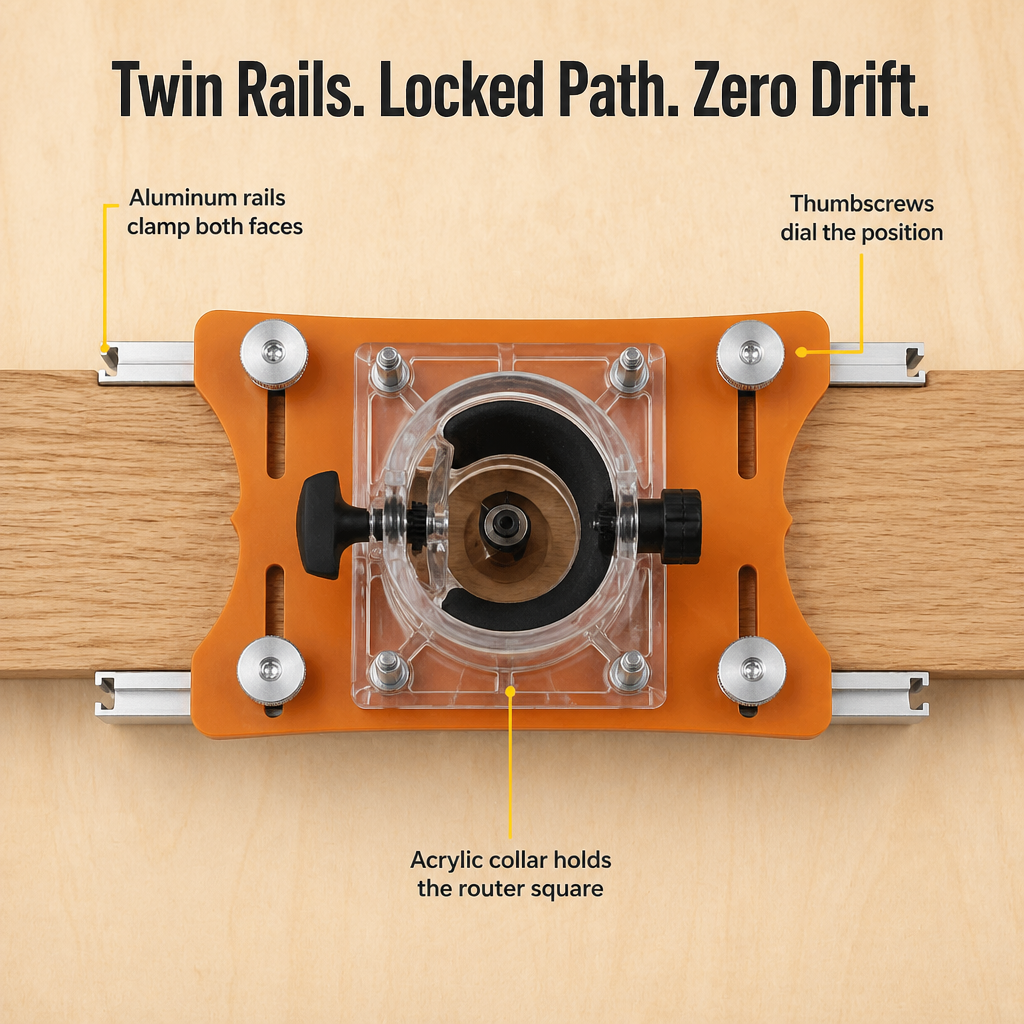

Twin anodized aluminum rails clamp on both faces of the workpiece, locking the cut line so the router runs dead-parallel along the edge without drift or grain skating.
Four knurled thumbscrews allow micro-adjustment of how far the bit sits from the edge. You can center mortises, offset grooves, or cut concealed-fastener channels from the same jig—no shims or re-measuring.
The clear 1/4-inch acrylic base lets you see your pencil lines, the bit, and your stop marks as you plunge, ensuring precise placement every time.

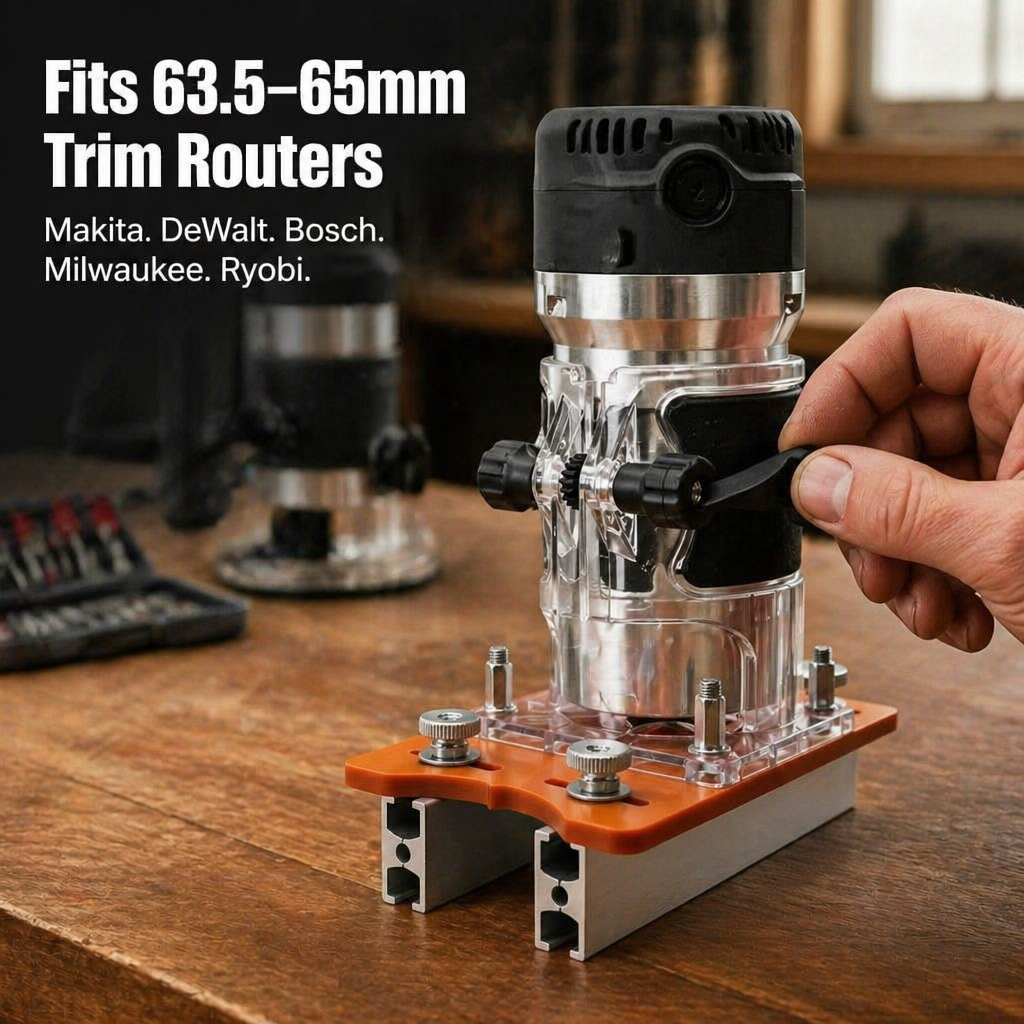

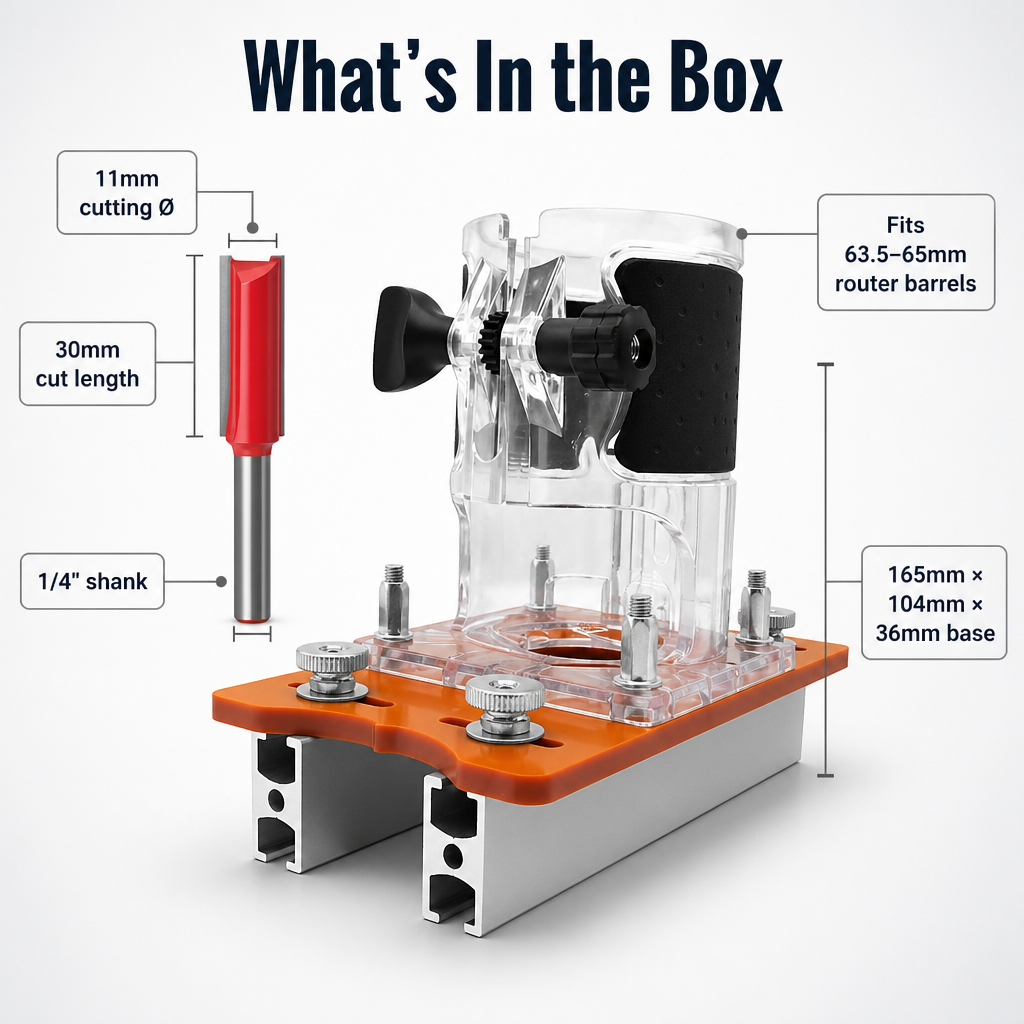

Designed to fit most compact trim routers with a 63.5–65 mm barrel, it slides on, locks in, and you’re cutting in under two minutes. The included 1/4" shank straight bit (11 mm cutting diameter, 30 mm cut length, 60 mm overall) is ready for hinge mortises, biscuit slots, and 8/10 mm concealed-fastener channels right out of the box.
Sturdy aluminum rails, a clear acrylic collar, and knurled steel thumbscrews keep the jig rigid under use. The rails stay flush against the workpiece, and the acrylic base resists impact and resin so nothing moves during cutting.
Three-step setup: insert the router into the acrylic collar and tighten the side clamp until the barrel is locked in place. Position the twin rails against both faces and tighten the four thumbscrews to fix the bit’s distance. Then plunge and run from one stop mark to the other for a mortise that fits on the first pass. In practice, you can move from box to first cut in under two minutes with a little familiarity.
Applications include repeatable hinge mortises, clean concealed-fastener channels for flat-pack panels, and edge grooves for panel alignment or hardware installation.
| NovaCraft Mortise & Slot Jig | Freehand / Chisel | Generic Plastic Edge Guides |
|---|---|---|
| Tracks dead-parallel on the edge with twin aluminum rails | ❌ Wanders, depends on a steady hand | ❌ Single rail, flexes under pressure |
| Cuts mortises and concealed-fastener slots from one setup | ❌ Different tool for each cut | ❌ Mortising only, no fastener slots |
| Fits 63.5–65mm trim routers — Makita, DeWalt, Bosch, Milwaukee | ❌ N/A | ❌ Often router-specific, brand-locked |
